Product Description
- Measures high side / low side pressures and temperatures
- 4-way valve block with 3/8 in. and 1/4 in. ports
- External vacuum probe
- App integration via Bluetooth (65-foot range)
- Calculates and displays superheat and subcooling temperatures

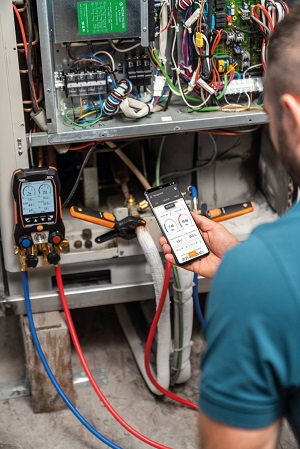

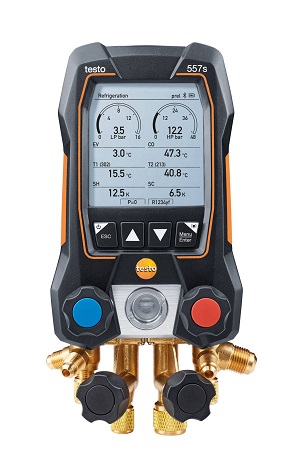

The testo 557 digital manifold has a 4-way valve block, a large backlit display, and a sight glass. Two NTC thermistor clamp probes provide superior accuracy for simultaneous, real-time superheat and subcooling readings. An external vacuum probe provides fast and reliable evacuation of the system. The wireless Bluetooth / app allows you to view measurement data on your smartphone or tablet, enabling you to quickly and conveniently complete and document your job. Then, be able to finalize documentation and send reports and invoice via email, right from the job site. In addition to the 60 refrigerant profiles stored in the instrument, the app can be used to download new refrigerants from the Internet, directly to the digital manifold.Measures high side / low side pressures and temperatures
Technical Data :
|
Measuring range:
|
-58° to 302 °F / -50 to +150 °C
|
|
Accuracy:
|
±0.9 °F / ±0.5 °C
|
|
Resolution:
|
0.1 °F / 0.1 °C
|
|
Probe connection:
|
2 x Plug-in (NTC)
|
| Vacuum: |
|
Measuring range:
|
0 to 20000 micron (measurement)
|
|
Accuracy:
|
± (10 micron + 10 % of mv) (100 to 1000 micron)
|
|
Resolution:
|
1 micron (0 to 1000 micron)
10 micron (1000 to 2000 micron)
100 micron (2000 to 5000 micron)
500 micron (5000 to 10000 micron)
5000 micron (10000 to 20000 micron)
|
| Pressure measurement: |
|
Measuring range:
|
-14 to 870 psi / -1 to 60 bar
|
|
Accuracy:
|
±0.5 % Fs
|
|
Resolution:
|
0.10 psi / 0.01 bar
|
|
Probe connection:
|
3 x 7/16" – UNF + 1 x 5/8'' – UNF
|
|
Overload rel. (high pressure):
|
943 psi / 65 bar
|
| General technical data : |
|
Dimensions:
|
9 x 5 x 3 in. / 220 x 125 x 70 mm
|
|
Operating temperature:
|
-4° to 122 °F / -20 to +50 °C
|
|
Protection class:
|
IP42
|
|
Battery life:
|
250 h (without illumination, without Bluetooth®, without vacuum probe)
|
|
Pressure media:
|
CFC
|
|
Refrigerants in instrument:
|
60 profiles:; R11; R12; R123; R1234yf; R1234ze; R125; R13B1; R134a; R14; R142B; R152A; R161; R22; R227; R23; R290; R32; R401A; R401B; R401C; R402A; R402B; R404A; R406A; R407A; R407B; R407C; R407D; R407F; R408A; R409A; R410A; Ra11A; R412A; R413A; R414B; R416A; R417A; R420A; R421A; R421B; R422A; R422B; R422C; R422D; R424A; R426A; R427A; R434A; R437A; R438A; R502; R503; R507; R508A; R508B; R600; R600a; R744 (CO₂); R718 (H₂O); update via App
|
|
System requirements :
|
requires iOS 7.1 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
|
|
Storage temperature:
|
-4° to 140 °F / -20 to +60 °C
|
|
Weight:
|
42 oz. / 1200 g
|
