PS-i Ultrasonic Leak Detector

Ultrasonic Leak Detector :

The PS-i is the world's first pocket size Full-Heterodyne Ultrasonic Leak Detector.

• The PS-i is capable of finding pressure and vacuum leaks in HVAC and compressed air systems, without being affected by wind or leaked refrigerants in confined spaces.
• The PS-i can test a TXV (Thermal Expansion Valve) in few minutes instead of hours.

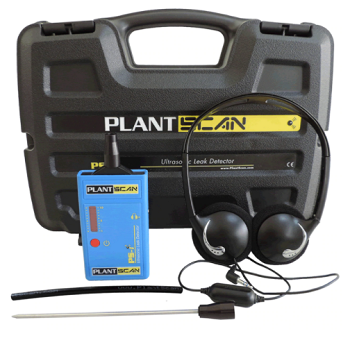

• Kit includes:Base Unit, Resonator Touch Probe, FoldingHeadset with volume control, Wave Guide,Small Carrying Case

Technical characterics:

• Detects: FREON Leaks, Vacuum Leaks ,Nitrogen Leaks
• Airborne Sensor Sensitivity: -80db
• Detection Performance: 1.5oz/yr (Capableof detecting a 5 psi leak out of a .005” hole,6-9m away depending on backgroundnoise)
• Ultrasound Converter type: Heterodyne
• Frequency response AirBorne: 36KHz -42KHz
• Heterodyne Oscillator: Analog
• Heterodyne Filter: 4KHz
• Output, Audio: 0Hz/4KHz
• Connector: 3.5mm stereo
• Output, Visual: 10 element bar graph with logarithmic response
• Dimensions & Weight: 10.5x0.61x0.22cm,138gr
• Body material: ABSBattery Type: 9 VoltRun Time: 80-120 hrs
