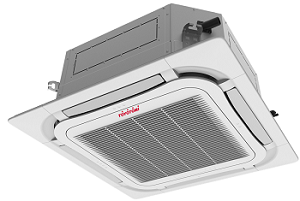

ΤΟΥΟΤΟΜΙ Ceiling Cassette DC INVERTER CCT110IUINVR32 / OU1103INVR32

Technical Specifications:

• Kw / H Refrigeration Design Load: 10
• Kw / H: 9: 9 Medium Zone Heating Design Load
• Cooling Performance Btu / H: 34100 Kw / H: 10
• Btu / H Performance Range: 10,918 - 37,532 Kw / H: 3,20 - 11,00
• Heating Performance Btu / H: 40900 Kw / H: 12
• Btu / H Performance Range: 10,236 - 46,062 Kw / H: 3,00 - 13,50
• Seer Cooling: 6.1
• Energy Cooling Class: A ++
• Medium Scop Heating: 4
• Medium Heat Energy Class: A +
• Current / Frequency: Ph-V-Hz 400/3/50
• Cooling - Annual Consumption (Qce) Kwh / A: 577
• Heating - Annual Intermediate Consumption (Qhe) Kwh / A: 3218
• L / H dehumidification: 3.4
• Internal Air Supply (Turbo / Hi / Mi / Lo) M3 / H: 1500/1470/1380/1220
• Internal Sound Power (Hi) Db (A): 59
• Internal Unit Noise Station (Turbo / Hi / Mi / Lo) Db (A): 50/48/46/42
• External Power Unit (Hi) Db (A): 70
• External Sound Sound Station Db (A): 55
• Internal Unit Dimensions (W * H * B) mm: 840 * 240 * 840
• Packaging Dimensions (W * H * B) mm: 963 * 325 * 963
• Net / Gross Weight Kg: 31/38
• Panel Dimensions (W * H * B) mm: 950 * 52 * 950
• Packaging Dimensions (W * H * B) mm: 1033 * 112 * 1038
• Net / Gross Weight Kg: 6 / 9.5
• External Unit Dimensions (W * H * B) mm: 940 * 820 * 460
• Packaging Dimensions (W * H * B) mm: 1073 * 868 * 563
• Net / Gross Weight Kg 89/101
• Cold Insulation Liquid Diameter mm (Inch): 9.53 (3/8 '')
• Mm (Inch) Gas Diameter: 15.88 (5/8 '')
• Maximum Length m: 65
• Maximum Altitude Difference m: 30
• Operating Limits: Cooling: -20 ~ 48 / Heating: -20 ~ 24
• Refrigerant: R32
• Wi-Fi Optional

Additional Specifications:

• Air Flow 360°
• Energy Class A++/ A
• Louver Position Memory
• Wirless Controler
• Refrigirant R32
