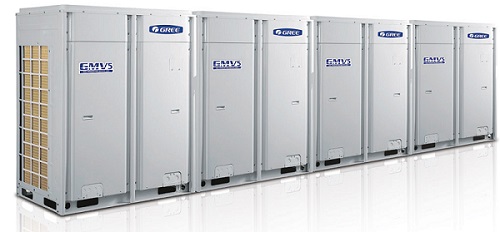

Modular GREE GMV5 VRF systems
Best known for its compact dimensions, discreet design and increased modular installation versatility, allowing total capacity of up to 180 kW, Gree GMV 5 combines the versatility of big VRF systems with the wide range of indoor unit choices for medium and large scale commercial applications.
Simple & versatile installation:
GMV 5 offers an increased level of installation versatility due to the big height and length of piping, as well as wide range of indoor units to choose from.
- max total piping length: 1000m
- max total piping length between outdoor and indoor unit: 165m
- max height difference between outdoor and indoor units: 90m
- max height difference between first branch and last indoor unit: 40m
Based on the modular combination of outdoor units GMV5 can achieve a maximum capacity of up to 188kW. The maximum allowed capacity diversity of indoor units can reach 135%, connecting up to 110 indoor units to a single module.
Wide temperature operation range: The units can operate in a wide ambient temperature range decreasing thus capacity loss due to outdoor temperature.
Product Range
The GMV 5 product Series is as below: GMV Mini: Side air discharge type Inverter VRF for residential houses (4~6HP). GMV IV: The modular type Inverter VRF for large buildings (8~64HP). GMV HR-II: The latest modular type Inverter VRF with simultaneous cooling and heating function (8~64HP). HOME GMV: The perfect integration of Inverter VRF and ATW Heat Pump for residential houses (4~10HP). GMV 5: The latest all DC Inverter VRF for large buildings (8~64HP).
