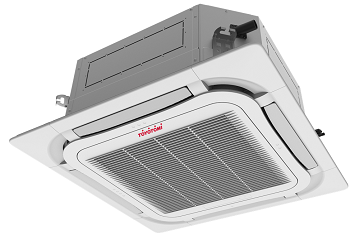

ΤΟΥΟΤΟΜΙ Ceiling Cassette DC INVERTER CCT71IUINVR32 / OU711INVR32

Technical Specifications:

• Kw / H Refrigeration Design Load: 7.0
• Kw / H Medium Zone Heating Design Load: 6.4
• Cooling Performance Btu / H: 23870 Kw / H: 7
• Btu / H Performance Width: 8.189 - 27.296 Kw / H: 2.4 - 8.00
• Heating Performance Btu / H: 27280 Kw / H: 8.00
• Btu / H Performance Width: 7,506 - 30,708 Kw / H: 2,20 - 9,00
• Seer Cooling: 7.2
• Energy Cooling Class: A ++
• Medium Scop Heating: 3.9
• Medium Heat Energy Class: A
• Current / Frequency: Ph-V-Hz 230/1/50
• Cooling - Annual Consumption (Qce) Kwh / A: 340
• Heating - Annual Intermediate Consumption (Qhe) Kwh / A: 2297
• L / H dehumidification: 2.4
• Internal Air Supply (Turbo / Hi / Mi / Lo) M3 / H: 1100/1050/960/870
• Internal Sound Power (Hi) Db (A): 52
• Internal Unit Noise Station (Turbo / Hi / Mi / Lo) Db (A): 43/42/40/39
• External Power Unit (Hi) Db (A) 67
• External Sound Noise Station Db (A) 52
• Internal Unit Dimensions (W * H * B) mm: 840 * 240 * 840
• Packaging Dimensions (W * H * B) mm: 963 * 325 * 963
• Net / Gross Weight Kg: 29/36
• Panel Dimensions (W * H * B) mm: 950 * 52 * 950
• Packaging Dimensions (W * H * B) mm: 1033 * 112 * 1038
• Net / Gross Weight Kg: 6 / 9.5
• External Unit Dimensions (W * H * B) mm: 892 * 698 * 340
• Packaging Dimensions (W * H * B) mm: 1029 * 750 * 458
• Net / Gross Weight Kg: 53/57
• Cold Insulation Liquid Diameter mm (Inch): 9.53 (3/8 '')
• Gas diameter mm (Inch): 15.88 (5/8 '')
• Maximum Length m: 50
• Maximum Altitude Difference m: 25
• Operating Limits: Cooling: -20 ~ 48 / Heating: -20 ~ 24
• Wi-Fi: Optional

Additional Specifications:

• Air Flow 360°
• Energy Class A++/ A
• Louver Position Memory
• Wirless Controler
• Refrigirant R32
